DL 2114

DL 2114

Description

DL 2114

Introduction

DL series renders high precision and heavy cutting for Automotive, Railway, Oil, Aerospace, Windmill Energy, Machine Mfg., Medical, & several other Commercial Industries. Its versatility and suitability make it the Ideal Machine.

ZF – Gear Box

    • ZF Gear box – Germany
    • High efficiency power transmission
    • Great torque output
    • All the bearings, gears and spindle have forced lubrication system to ensure a smooth operation of the gearbox and to make sure a constant temperature at all times

Gear Box

  • Equipped with ZF gear box with gear ratio of 1:4 in all models to provide high torque & heavy cutting.

Base

  • Lubricant recycling to keep the base clean.
  • Lubricant and coolant separation to prolong the service life of the coolant.
  • Complete chip management system to avoid damage to the guideway.

Linear Guideway

  • X axis is equipped with R55 roller type linear guideways for high rigidity and precision to achieve a long service life with highly accurate motion.

Distance Between Columns

  • 1400 to 3000mm to meet different customers’ machining requirements.



PARTICULARUNITDL2114
TRAVEL
X axismm2100
Y axis mm 1400
Z axismm800
Distance from spindle nose to tablemm150-950
Distance between two columnmm1400
Max.workpiece width mm1300
WORKING TABLE
Table lengthmm2000
Table widthmm1200
Table loadkg4000
T-Slot (Width x number x pitch)mm22 x 140 x 7
SPINDLE
Spindle taper–BT50
Spindle Speed/ gearbox brandrpm6000 / ZF Germany
Spindle motor power (continuous)kW15/18.5 (18.5/22 Opt.)
Feed
Rapid traverse X/Y/Zm/min15/15/10
Cutting feedratemm/ min8000
X axis ball screw (diameter x lead) mmGQ50x10
Y axis ball screw (diameter x lead)mmGQ50x10
Z axis ball screw (diameter x lead)mmGQ50x10
3 AXES SERVO MOTOR
X /Y/Z axis motor powerkW7/7/7
ACCURACY
Positioning accuracy(JIS)mm±0.005/300
Positioning accuracy(VDI 3441)mm–
Repeatability(JIS) mm±0.003/1000
Repeatability (VDI 3441) mm–
ATC
ATC type–Arm type
Tool magazine capacitypcs24 ( 32 Opt.)
Max.tool size (Full Pocket/ Next Pockets empty)mm110/200
Max.tool lengthmm350
Max.tool weightkg15
OTHERS
Coolant tank capacityliter700L
Chip removal system–screw type
Ball screw/ guideways lubrication–Oil type
Lubrication tankliter4
Power consumptionkVA40
DIMENSION AND WEIGHT
Machine packing gross weight – approx.kg16500
Floor space ( L x W x H) approx.M5.2/3.4/4

Standard Accessories :

  • Coolant system
  • Half guarding
  • Levelling bolts & blocks
  • Centralized automatic oil lubrication system
  • Air blast through spindle
  • Program light
  • Tool & box
  • Spindle oil cooler
  • Remote handwheel
  • Panel ac
  • Screw type chip conveyor
  • USB/RJ45/CF/RS-232 Interface
  • LED work light
  • 90° milling head
  • Manual (Auto) position of heads
  • Linear scales(X/Y/Z)
  • Foot pedal
  • Thermal compensation
  • 4th axis rotary table
  • Automatic tool measurement system
  • Oil mist device
  • Full guarding
  • Steel belt type chip conveyor
Broucher
Machine Type

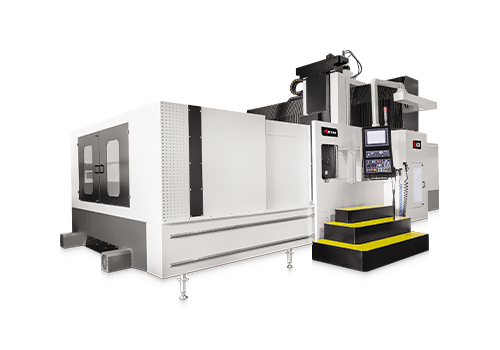

Double Column Machining Centres
