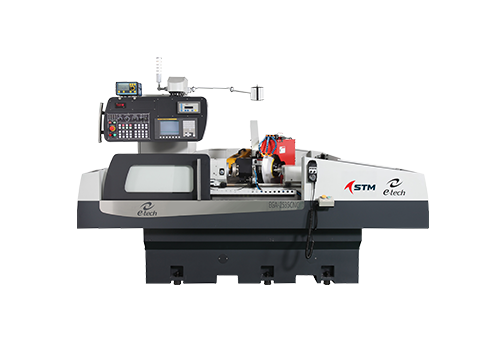

STM Cylindrical Grinding Machine EGP-25100

STM Cylindrical Grinding Machine EGP-25100

EGP-25100

Swivel Over Table(mm)

Ø250

Swivel Over Table(mm)

1000

Max. Grinding Diameter (mm)

Ø230

Description

  • The EGP Series is designed to deliver high precision, efficiency, and ease of operation.
  • They find applications in the automotive, medical instrument, tooling, job shop, and mold industries.
  • These machines offer superior grinding capabilities and come with various control options, such as a touch probe, automatic sizing device, and swing-down ID grinding attachment.
  • Work Head: The work spindle, designed with NN bearings, offers heavy-duty load capacity, optimal rotation accuracy, and high rigidity.
  • The servo motor drive ensures consistent speed and torque during grinding operations.
  • A positive purge system keeps grinding swarf and coolant out of the work head, ensuring a long lifespan.
  • Rigid Machine Base: The heavily ribbed box-type base, made of Meehanite casting, ensures excellent rigidity and stability, fully supporting the table on both ends.
  • Wheel Head Spindle Bearing Options: Standard The contact bearing type spindle is easy to maintain, environmentally friendly, and minimizes thermal growth issues.
  • Tailstock: Equipped with a coolant nozzle on the top for cooling the center tip, the tailstock features an air floating device for smoother movement and table protection.
  • Optional tailstock quill travel of 75 mm facilitates easy workpiece loading/unloading.
  • The oil-bathed quill enables smooth movement, and the optional taper adjustment feature helps to easily correct taper error.
  • X-Axis Guideways: The hand-scraped Double V guideways provide maximum support to the wheel head, ensuring greater stability and grinding capacity.
  • This design guarantees superior accuracy and extended machine life.

Specification

EGP-25100UnitValues
